Dual Trace Oscilloscope CS-1012

Country:  Japan	Manufacturer/Brand:  Trio-Kenwood Electronic Inc.; Komagane
alternative name	Trio Corp.
Brand	Jennen
Year: 1987 ?	Type: Service- or Lab Equipment
Valves / Tubes	1: 150GTM31A
Semiconductors (the count is only for transistors)	Semiconductors present.

Wave bands	- without
Power type and voltage	Alternating Current supply (AC) / 100; 120; 220; 240 Volt
Loudspeaker	- - No sound reproduction output.
from Radiomuseum.org	Model: Dual Trace Oscilloscope CS-1012
Material	Metal case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	260 x 180 x 460 mm / 10.2 x 7.1 x 18.1 inch
Notes	10 MHz 2 channel/dual trace oscilloscope, 2 kV acceleration voltage, 1 mV/div to 5 V/div, sweep: 0,5 µs/div to 0,5 s/div.

This model was suggested by .

Isolator 3M

SCOTCH 23
Rubber Splicing Tape.
high voltage.self-fusing,insulating Tape
Based on Ethylene Propylene Polymers ( EPR )

KENWOOD TM 251

KENWOOD TM 251

 BARANG LANGKA 99 %
NORRRMAAAALLL

SPECIFICATIONS

Type:	Amateur VHF transceiver
Frequency range:	TX: 144-146 MHz RX: 144-146 / 430-440 MHz
Mode:	FM
RF Power output:	Hi: 50 W Mid: 10 W Lo: 5 W
Receiver system:	N/A
Sensitivity:	N/A
Selectivity:	N/A
Image rejection:	N/A
Voltage:	13.8 VDC
Current drain:	RX: Max 600 mA TX: Max 11 A
Impedance:	50 ohms
Dimensions (W*H*D):	140*40*160 mm
Weight:	1 Kg
Manufactured:	1994-19xx (Discontinued)
Other:	9K6 packet ready. 41 memories. New price 1995 in Sweden: 5493:- SEK New price 1996 in Sweden: 3900:- SEK
Related documents:	User manual (12.3 MB)
Modifications:

VHF AMPLIFIER 144 MHZ

 MERAGE B 3016

TX / RX  NORMAL
OUT 160 WATT

Poskan Komentar

CONNECTOR DIN casis

 CONNECTOR DIN CASIS

DUMMY LOAD KDi T 985s

KDi T 985s 50 WATT USA

DUMMY LOAD SUHNER

DUMMY LOAD DIN MALE 2 WATT

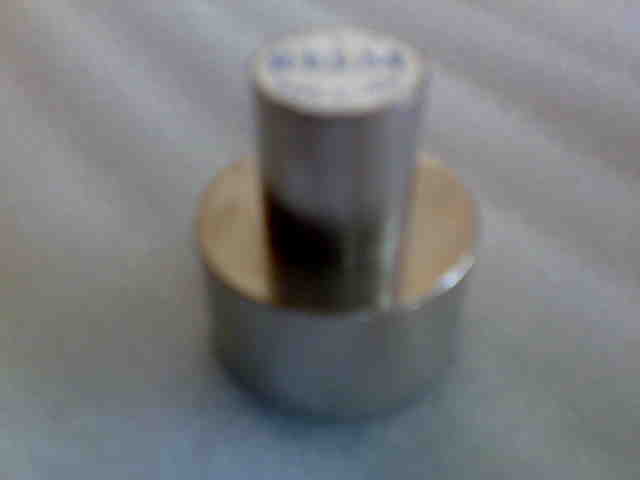

DUMMY LOAD RELM USA

 DUMMY LOAD RELM USA
2 watt dumyload 50 ohm

DUMMY LOAD 8164 USA

COAXIAL RESISTOR BIRD 8164
100 watt
50 ohm

DUMMYLOAD 2 WATT

 DUMMYLOAD N MALE
 2 WATT 50 OHM usa
